Design

In order to meet the special requirements of control valve we produced special strokes actuators on costumer request (60˚,120˚,145˚,180˚,360˚etc.).  The output torques and mounting Dimension of the actuators with double acting can be found by consulting the relative tables of K-Torc standard series actuators.

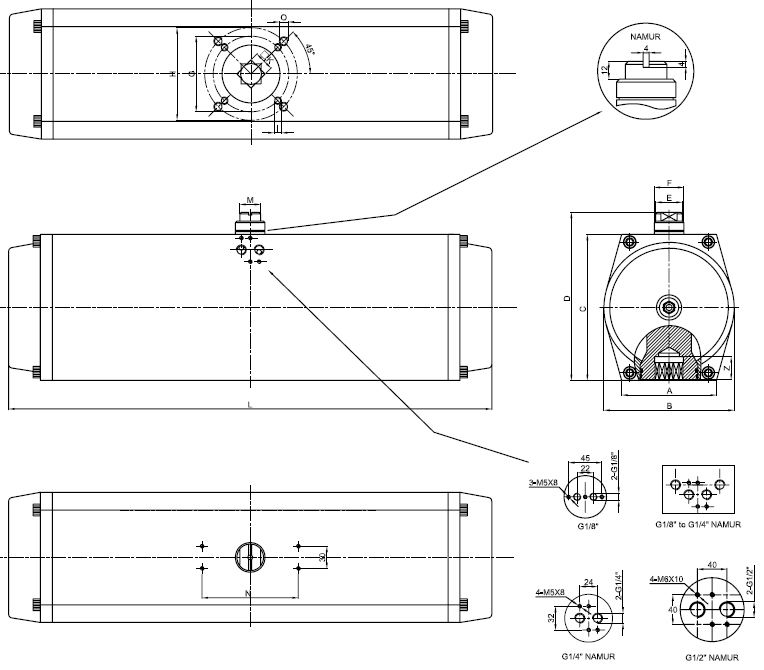

Dimension

                                                                                                                                                                                                                                                                                       unit:mm

Model A B C D E F G H I K L M N O Z Air Connection B-45 48 58 65 95 12 14 Ø36 Ø50 M5x8 11 204 10 80 M6x10 14 G1/8" B-52 50 59 74 104 12 14 Ø36 Ø50 M5x8 11 210 10 80 M6x10 14 G1/8" B-63 60 72 88 118 12 18 Ø50 Ø70 M6x10 14 243 10 80 M8x13 18 G1/8" B-75 65 83 100 130 12 18 Ø50 Ø70 M6x10 14 258 10 80 M8x13 18 G1/8" B-83 67 90 109 139 14 18 Ø50 Ø70 M6x10 17 298 10 80 M8x13 21 G1/8" B-92 76 104 120 150 18 25 Ø50 Ø70 M6x10 17 360 14 80 M8x13 21 G1/8" B-105 90 115 133 163 19.5 25 Ø70 Ø102 M8x13 22 386 14 80 M10x16 26 G1/8" B-125 103.5 140 155 185 28 40 Ø70 Ø102 M8x13 22 426 20 130 M10x16 26 G1/4"(1/4"NPT) B-140 107 152 171.5 201.5 28 40 Ø102 Ø125 M10x16 27 565 20 130 M12x20 31 G1/4"(1/4"NPT) B-160 128 175.8 197 227 36 40 Ø102 Ø125 M10x16 27 652 28 130 M12x20 31 G1/4"(1/4"NPT) B-190 135 206 230 260 45 60 Ø140 36 753 32 130 M16x25 50 G1/4"(1/4"NPT) B-210 135 226 255 285 45 60 Ø140 36 760 32 130 M16x25 50 G1/4"(1/4"NPT)
